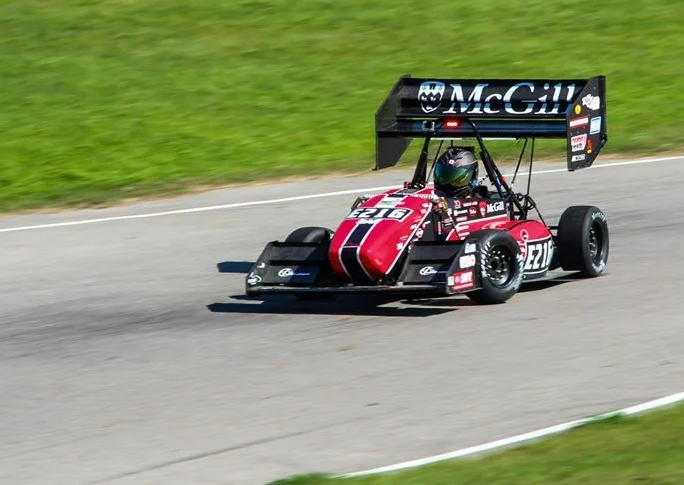

MFE 1.0
Performance
0-100km/h: 2.7 seconds
top speed: 108km/h
weight: 245 kg (540 lbs)
Chassis
1020 Steel space frame
Carbon fiber nose cone
Carbon fiber seet and steering wheel
Rapid adjust pedal tray
Suspension
Unequal length double wishbone independant suspension
Hoosier LC0 18x7.5
10" Keizer aluminum wheel sheel and custom aluminum Center
Quarter midget spring and damper
Adjustable front Anti Roll Bar
Drivetrain
Aluminum CNC'd bevel gear transmision
Steel halfshafts
Powertrain
110V, 4.33kWh lithium polymer accumulator.
Carbon fiber accumulator container
Dual rear independent AC-15 Motors
2x34 kW peak power
2xCurtis motor controllers
Brakes
Independant front/rear brake lines with bias bar adjustment
Custom made steel vented rotors
APRacing calipers (4/2 piston F/R)
Aerodynamics
CLA of 3.7
CDA of 1.3
3 element Front wing , 3 element rear wing
Complete underbody including splitter and diffuser
Carbon fiber skin/foam core wing construction
Electronics
National Instruments Compact RIO vehicle controller
Torque Vectoring
MFE 1.0 Results
FORMULA SAE ELECTRIC
LINCOLN, NEBRASKA
2nd Place Overall
1st in Design
1st in Autocross
2nd in Endurance
2nd in Efficiency
